FusionCharts for Flex > Your First Chart > Changing Chart Type
The chart type can be specified using FCChartType attribute. In the previous section we created a Column 3D chart. In this section we will convert it into a Line chart.
To render a Line chart, we must change the value of FCChartType to Line, as shown in the following code:
<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:s="library://ns.adobe.com/flex/spark"
xmlns:mx="library://ns.adobe.com/flex/mx" xmlns:components="com.fusioncharts.components.*">
<components:FusionCharts x="10" y="10" FCChartType="Line" FCDataURL="Data.xml"/>
</s:Application>

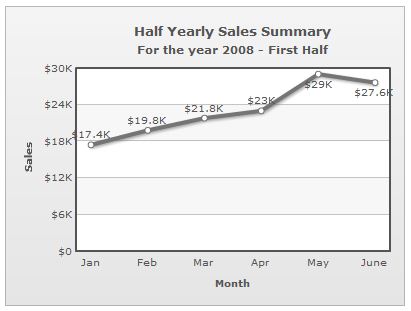

The above code creates a Line chart as shown below.
Following is the list of available chart types:
| Description | FCChartType Value |
|---|---|
| Column 2D Chart | Column2D |
| Column 3D Chart | Column3D |
| Pie 3D Chart | Pie3D |
| Pie 2D Chart | Pie2D |
| Line 2D Chart | Line |
| Area 2D Chart | Area2D |
| Bar 2D Chart | Bar2D |
| Doughnut 2D Chart | Doughnut2D |
| Doughnut 3D Chart | Doughnut3D |
| Multi-series Column 2D Chart | MSColumn2D |
| Multi-series Column 3D Chart | MSColumn3D |
| Multi-series Line 2D Chart | MSLine |
| Multi-series Area 2D Chart | MSArea |
| Multi-series Bar 2D Chart | MSBar2D |
| Multi-series Bar 3D Chart | MSBar3D |
| Stacked Column 2D Chart | StackedColumn2D |
| Stacked Column 3D Chart | StackedColumn3D |
| Stacked Area 2D Chart | StackedArea2D |
| Stacked Bar 2D Chart | StackedBar2D |
| Stacked Bar 3D Chart | StackedBar3D |
| 3D Single Y Combination Chart | MSCombi3D |
| 2D Single Y Combination Chart | MSCombi2D |
| 2D Dual Y Combination Chart | MSCombiDY2D |
| Column 3D Line (Single Y) Combination Chart | MSColumnLine3D |
| Multi-series Column 3D Line Dual Y Combination Chart | MSColumn3DLineDY |
| Stacked Column 3D Line Dual Y Combination Chart | StackedColumn3DLineDY |
| Scroll Column 2D Chart | ScrollColumn2D |
| Scroll Line 2D Chart | ScrollLine2D |
| Scroll Area 2D Chart | ScrollArea2D |
| Scroll Stacked Column 2D Chart | ScrollStackedColumn2D |
| Scroll Combination 2D Chart | ScrollCombi2D |
| Scroll Combination 2D Dual Y Chart | ScrollCombiDY2D |
| Logarithmic Column 2D Chart | LogMSColumn2D |
| Logarithmic Line Chart | LogMSLine |
| Inverse y-Axis Column 2D Chart | InverseMSColumn2D |
| Inverse y-Axis Line 2D Chart | InverseMSLine |
| Inverse y-Axis Area Chart | InverseMSArea |
| Scatter Chart | Scatter |
| Bubble Chart | Bubble |
| Spline Chart | Spline |
| Spline Area Chart | SplineArea |
| Multi-series Spline Chart | MSSpline |
| Multi-series Spline Area Chart | MSSplineArea |
| Funnel Chart | Funnel |
| Pyramid Chart | Pyramid |
| Radar Chart | Radar |
