Pie & doughnut charts are used for showing data composition. Here, you’ll find information on usage of various attributes meant for customizing the functional and aesthetic aspects of pie/doughnut charts.

FusionCharts XT offers interactive legend feature has been added to pie/doughnut charts. The legend is an alternative way of labeling a pie/doughnut chart. As the legend is interactive, clicking on a legend key causes the corresponding pie/doughnut section to slide-out. Re-clicking the same key will cause the pie/doughnut section to slide-in.

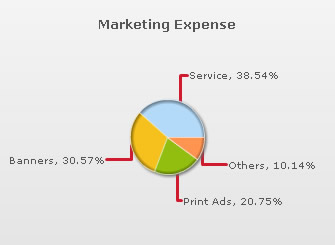

The XML/JSON for the above chart looks as under:

<chart showvalues="1" caption="Marketing Expense" numberprefix="$"
 showlegend="1" enablesmartlabels="0" showlabels="0" showpercentvalues="1" >
   <set value="43500" label="Service"/>
   <set value="34510" label="Banners"/>
   <set value="23420" label="Print Ads"/>
   <set value="11450" label="Others"/>
</chart>

{
  "chart":{
    "showvalues":"1",
    "caption":"Marketing Expense",
    "numberprefix":"$",
    "showlegend":"1",
    "enablesmartlabels":"0",
    "showlabels":"0",
    "showpercentvalues":"1"
  },
  "data":[{
      "value":"43500",
      "label":"Service"
    },
    {
      "value":"34510",
      "label":"Banners"
    },
    {
      "value":"23420",
      "label":"Print Ads"
    },
    {
      "value":"11450",
      "label":"Others"
    }
  ]
}

Legend keys are denoted by icons resembling dataplots. So, in case of pie/doughnut charts, the legend key resembles a pie/doughnut. For information on customizing the legends refer to XML/JSON Attributes for Legend.

Legends are not displayed by default in pie/doughnut charts, they can be added by declaring the showLegend attribute.

<chart showLegend='1'... >

Smart labels help in identifying each sector of the plot. If your chart contains a lot of data then it is better to use smart labels in place of standard labels. Since smart labels are connected to their respective plot sections by a line (called smart line), they make the chart clutter free and easy to read. Smart lines are displayed on pie/doughnut charts by default.

If you have too many labels in your chart then chances are that your chart will look cluttered even with the smart labels. FusionCharts XT prevents this clutter by automatically skipping overlapping labels. This feature is active by default, but it can be disabled by declaring skipOverlapLabels attribute of the <chart> element as shown below:

<chart skipOverlapLabels='0'...  >

FusionCharts XT allows label wrapping in pie/doughnut charts. To enable that, you set:

<chart manageLabelOverflow='1' ..>

By default, this attribute is set to 0. Essentially, use of this attribute causes division of the chart into imaginary quadrants. Data labels are either wrapped or truncated depending on their length and also the quantity of data labels contained in the quadrant. If a quadrant contains many data labels, then long labels will be truncated (with ellipses, and then tool-tips are enabled for that label) and not wrapped owing to unavailability of overhead space.

Example:

<chart manageLabelOverflow='1' ...  >

Following attributes can be used for cosmetic customization of smart lines:

Example:

<chart smartLineColor='D11B2D' smartLineThickness='3' smartLineAlpha='75' isSmartLineSlanted='0'...>

This yields the following output:

If the chart is composed of fewer data items, then you might want to disable the smart lines in order to make the chart bigger. This can be done by declaring the enableSmartLabels attribute in the following way:

<chart enableSmartLabels='0'...>

You can determine whether you want to display the actual values of the dataplots along with their respective labels or display values converted into percentage. By default, the actual values are displayed as shown in the chart shown below:

To show data values in percentage form, you must declare showPercentValues attribute of the <chart> tag.

<chart showPercentValues='1' ... >

Data values in tooltips

Example:

<chart showPercentInToolTip='0'...>

This results in:

Pie and doughnut charts support end-user interactivity, the charts can be sliced and rotated through simple mouse actions (this feature is exclusive to pie and doughnut charts).

<chart enableRotation ='1'...>

Customizing the radius

Changing the radius does not affect the size of the chart's background.

Example:

<chart pieRadius='75'...>

Applying bevel effect

Example:

<chart radius3D='90'...>

A pie/doughnut chart has an internal angular scale, and data is plotted in accordance with this scale. The data that is specified in the first <set> element of your XML or in the first data object of JSON, gets plotted at position 0� on the chart's angular scale. The remaining data-items are plotted after the first one in the order of their listing. FusionCharts XT allows you to change the default position of the first data-item on the angular scale. This means that the first data-item can be positioned at an angle other than 0�. This can be achieved by setting the intended angle (a value between 0-360) as the value for startingAngle attribute.

Example:

<chart startingAngle ='180'...>

Configuring the slicing distance

Example:

<chart slicingDistance ='20'...>
